SMART AND POWERFUL HARVESTING WITH THE NEW DESIGN OF THE ELECTRIC FRUIT HARVESTER

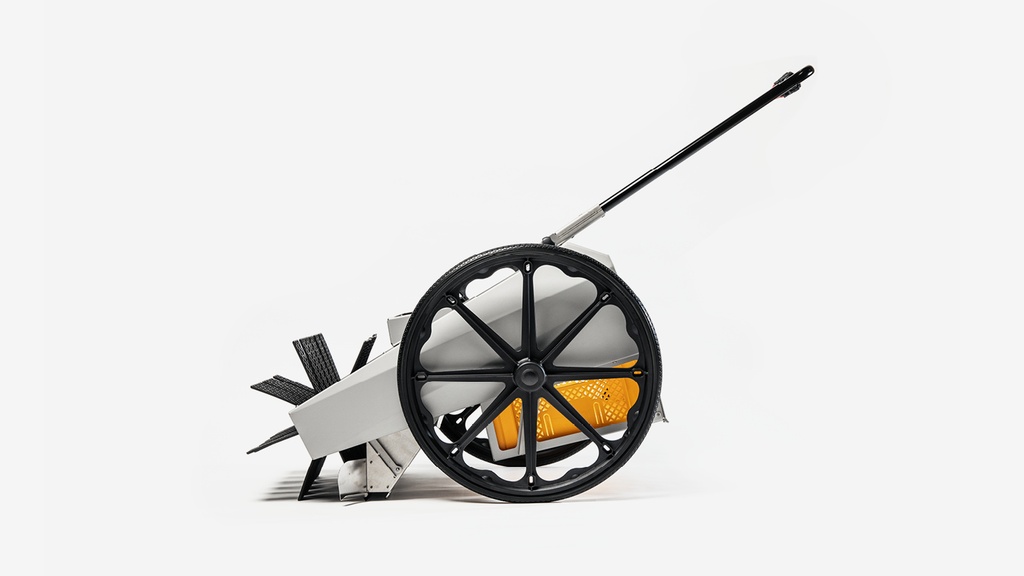

The Obstraupe 05+ is Organic Tools new flagship. Evident in the new Obstraupe are the revised design, 6 years of development and high-quality components. The drive of the Obstraupe has been redesigned so that a 400W electric motor with planetary gearbox and chain drive now set the new standard in efficient, quiet and powerful fruit harvesting. The new motor offers IP 65 protection against dust and water splashes. The maximum speed has been increased to 180 RPM and can be continously adjusted via the potentiometer. The lower, stiffer design enables optimal visibility when harvesting fruit and nuts. The stop-curtain catches the fruit when it is pushed into the box. Sturdy 18cm high folding crates increase storage capacity during harvest and reduce it in storage. The new blade-based anti-tangle protection prevents longer grasses from wrapping around the roller by peeling it off immediately, before it gets any ideas.
Everything else that makes up the Obstraupe 05+ is tried and tested: stainless steel (V2A) and anodized aluminum continue to build the structural frame of the machine. The E-bike battery provides power for about 5 hours. The leaf brush effectively separates fruit from leaves and grass.
— 2 folding fruit crates (60 cm x 40 cm x 18 cm)
— 48V E-Bike battery (10,5Ah or 14,5 Ah - depending on selection)
— Charger (2A or 4A - depending on selection)
— 2 x 24" PU solid rubber wheels
— Leaf brush (60 cm x 20 cm)
BATTERY AND CHARGER
— 48V E-Bike battery 14,5Ah and 2A charger: operating time app. 5-6 h, charging time app. 7-8 h
— 48V E-Bike battery 14,5Ah and 4A quick charger: operating time app. 5-6 h, charging time app. 3-4 h
— 48V E-Bike battery 10,4Ah and 2A charger: operating time app. 4-5 h, charging time app. 4-5 h
— 48V E-Bike battery 10,4Ah and 4A quick charger: operating time app. 4-5 h, charging time app. 3 h
— 76 cm working width, 57 cm roller width with 44 fins made from food-grade plastic
— 500 - 1000 kg picking capacity
— Folding fruit crate 60 cm x 40cm x 18cm (40 L capacity)
— Single-axis design, hand-guided without wheel-drive
— 24“ PU soild rubber wheels
— Base frame made from stainless steel (V2A, glass bead blasted)
— Handlebar and covers made of anodized aluminium (AIMg2), hight adjustable
— 7,5° wheel inclination and wheel deflectors to minimise collision damage
— Brushless motor with planetary gearing (400W) and chain drive
— Potentiometer for continuous speed control up to 180 rpm
— Controller in dust and splash-proof aluminium housing
— Anti-tangling protecting from long grasses with cutting blade system on collecting roller
— 48V E-Bike battery „Silver Fish“ (optional: 10,4Ah or 14,5 Ah), Lithium-ion cells
— Charger 2A or 4A (depending on selection) for standard 230V socket, 4A charger is air-cooled
— Total weight 37 kg (incl. battery)
— Transport dimensions 75 cm x 110 cm x 90 cm (folded)
We offer a 5-year warranty on the frame upon registration. For all other components, we naturally fulfill the legal warranty of 2 years. We do our utmost to make our products low-maintenance and repair-friendly. The E-bike Li-Ion battery is suitable for approx. 1,000 charging cycles and should last many seasons with proper maintenance (charge to 80% approx. every 3 months). Since we buy this ourselves, we are limited with regard to warranty provisions and can only give 1 year of warranty. If you have any questions about our warranty conditions, please feel free to contact us.
