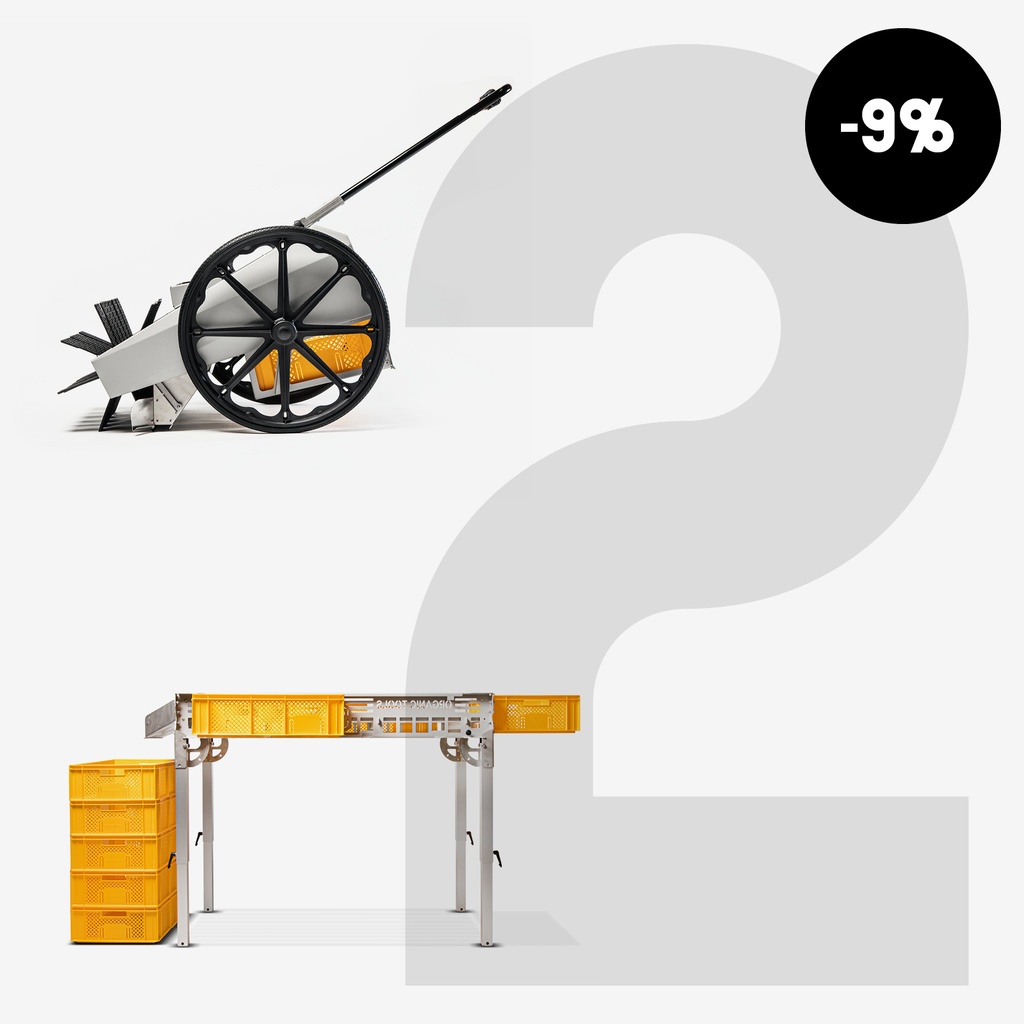

Obstraupe 05+ 2-Harvest Kit
Obstraupe 05+ | Sortier!02 | 6 fruit crates
DIE OBSTRAUPE UND IHR BESTER FREUND IM KRAFTVOLLEN DUO.
OBSTSAMMLER OBSTRAUPE 05
— 48V E-Bike Akku (10,5Ah oder 14,5 Ah - je nach Auswahl)
— Ladegerät (2A oder 4A - je nach Auswahl)
— 2 x 24" PU Vollgummi Räder
— Laubbürste (60 cm x 20 cm)
— 20 slats aluminium anodised
— Variable spacing: 27 mm | 42 mm | 57 mm
— 6 fruit crates (60 cm x 40 cm x 17 cm, 34 L capacity)
BATTERY AND CHARGER
— 48V E-Bike Akku 14,5Ah und 2A Ladegerät: Einsatzdauer ca. 5-6 h, Ladezeit ca. 7-8 Stunden
— 48V E-Bike Akku 14,5Ah und 4A Schnellladegerät: Einsatzdauer ca. 5-6 h, Ladezeit ca. 3-4 Stunden
— 48V E-Bike Akku 10,4Ah und 2A Ladegerät: Einsatzdauer ca. 4-5 h, Ladezeit ca. 4-5 Stunden
— 48V E-Bike Akku 10,4Ah und 4A Schnellladegerät: Einsatzdauer ca. 4-5 h, Ladezeit ca. 3 Stunden
— 76 cm Arbeitsbreite, 57 cm breite Sammelwalze mit 44 Lamellen aus lebensmittelechtem Kunststoff
— 500 - 1000 kg Aufleseleistung
— Graswickelschutz mit Klingensystem an der Sammelwalze
— Einachsige Bauweise, handgeführt ohne Radantrieb
— 24“ Vollgummi-Räder PU
— Grundrahmen aus rostfreiem Edelstahl (V2A, Glasperlen-gestrahlt)
— Griffbügel und Abdeckungen aus Aluminium (AIMg2), eloxiert, höhenverstellbar
— 7,5° Radneigung und Radabweiser zur Verringerung von Auffahrschäden
— Bürstenloser Elektromotor mit Planetengetriebe (400W) und Kettenantrieb
— Potentiometer für stufenlose Drehzahlregelung bis max. 150 U/min
— Controller in Staub- und Spritzwassergeschütztem Aluminiumgehäuse
— 48V E-Bike Akku „Silver Fish“ (wahlweise 10,4 Ah oder 14,5 Ah), Zellen: Lithium-Ionen
— Ladegerät 2A oder 4A (je nach Auswahl) für 230V Steckdose, 4A Ladegerät luftgekühlt
— Bruttogewicht (inkl. Akku) 33 kg
— Packmaß 75 cm x 110 cm x 90 cm (geklappt)
SORTIERTISCH SORTIER! 02
— Frame made of aluminium (surface optionally anodized), ends and funnel made of stainless steel (V2A)
— Legs individuelle foldable (to be fixed with 1 locking pin per leg) und continously height adjustable (to be fixed with 1 fixing pin per leg)
— Maximum sorting height 110 cm
— Variable spacing: 27 mm | 42 mm | 57 mm (with additional slats from 12 mm)
— Stainless steel funnel for direct transfere into a large box or trailer
— Device for hanging in fruit crates and buckets (max. load app. 15 kg/ side) as well as sorting into bags (optional with bag holder accessory)
— Transport safety device for slats
— Transport size (with hopper, legs folded): 161 cm x 73 cm x 33 cm
— Packing size (dismantled in carton): app. 140 cm x 30 cm x 52 cm
— Further accessoires (additional slates, wheel set, bag holder) available separately
— 6 Obstkisten (60 cm x 40 cm x 18 cm, 40L Fassungsvermögen)
We offer a 5-year warranty on the frame of the Obstraupe upon registration. For the sorting! and all other components, we naturally fulfill the legal warranty of 2 years. We do our utmost to make our products low-maintenance and easy to repair. The e-bike Li-ion battery is suitable for about 1,000 charging cycles and should last many seasons with proper maintenance (about every 3 months to 80 % charge). Since we buy this ourselves, we are limited with regard to warranty provisions and can give only 1 year warranty. If you have any questions about our warranty, please feel free to contact us.
